Medium Safety Bundle - 2 Channel

HS7A-DMP Non-contact magnetic safety interlock switches perform the same functions as standard mechanical safety interlock switches, but are designed to be used in applications where non contact is desired between the switch and its actuating key. It's also being used where space is at a premium. The slim profile makes it easy to mount in locations out of the way of personnel and machine operation, reducing the possibility of damage or misalignment.

Key Features

• Compact rectangular 25 x 88 x 13 mm

• 1NO+2NC, or 2NO+1NC contacts

• Models with 2m, 5m, and 10 cable length

• Models with LED indicator

• Up to 36 sets can be connected

• IP67 protection

• B10d: 5.0E+07

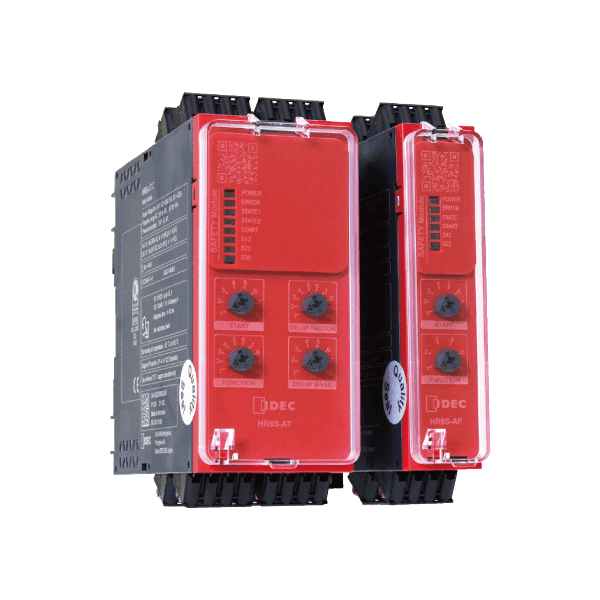

Improve productivity with predictive maintenance of safety systems

Key Features

• Safety relay modules for IoT

• Advanced diagnostic and output functions: Predictive maintenance

• Connect to various input devices using a switch dial：Setting a start function, Setting an application function

• A sealing strip to secure the protective cover is included, preventing the dials from being accidentally moved or settings from being changed.

• Outputs can be expanded.

• LED display for viewing status at a glance

• Delay function

• Selectable terminal block (Push-in terminal block / screw terminal block)

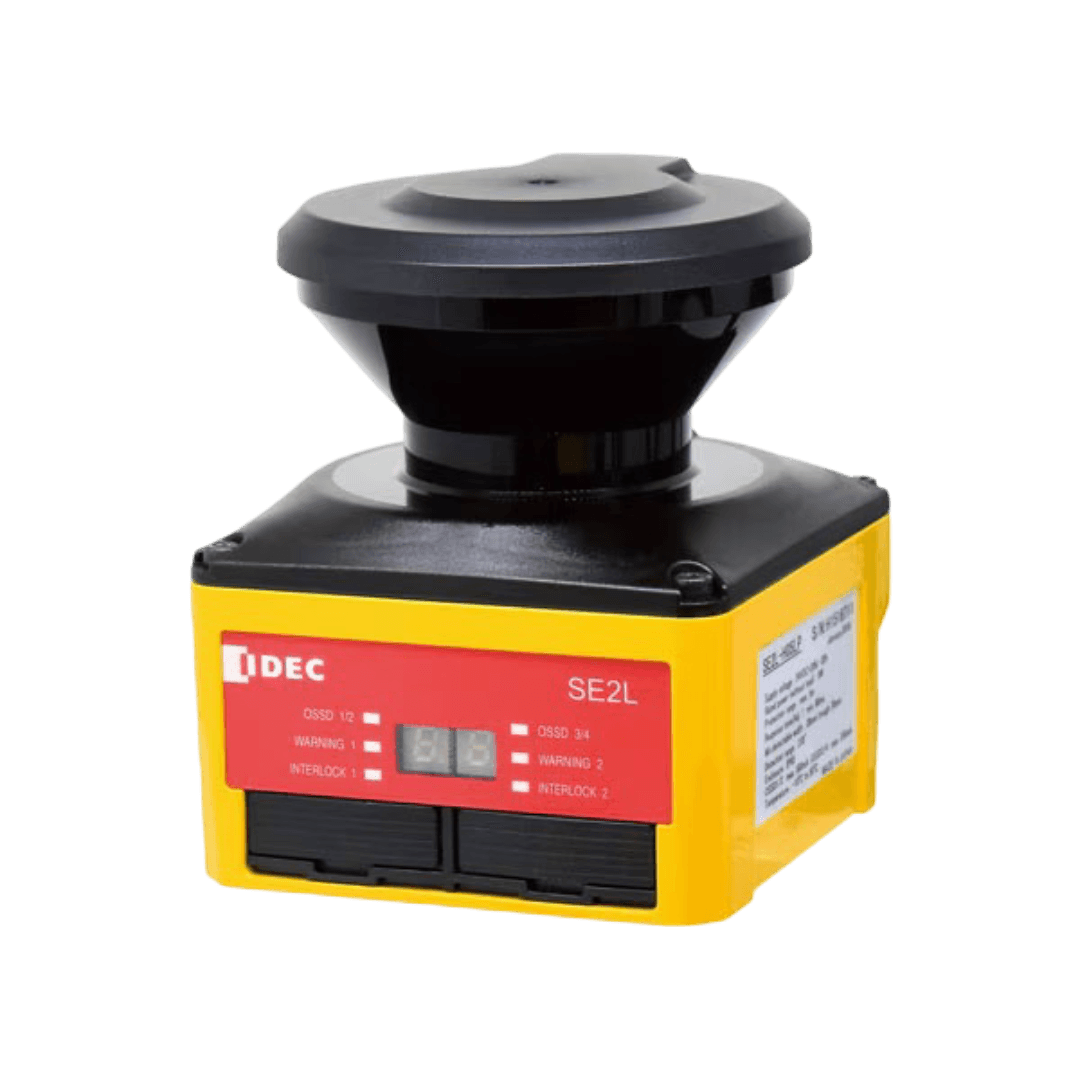

The SE2L Safety Laser Scanner from Apem IDEC sets new standards in industrial safety. With a 270-degree detection angle, a 5-meter protection zone, and a warning zone of up to 30 meters, it provides comprehensive protection for machines and automated systems—even in harsh environments.

Thanks to its Master/Slave functionality, up to four scanners can be connected to cover complex configurations such as 360° protection for AGVs or safeguarding multiple machine areas.

Intelligent Muting Function

The integrated muting function allows specific parts of the protection zone to be temporarily disabled, enabling workpieces to pass through without interrupting operations. An override function ensures that mistakenly stopped processes can be quickly resumed.

Flexible Area Switching

The SE2L features four input channels that enable speed-dependent area switching—ideal for mobile robots such as AGVs and AMRs. This allows the scanner to dynamically adapt to the machine’s movements.

Customizable Protection Patterns and Blanking

With up to 128 configurable protection patterns, the scanner can be tailored to a wide range of applications. Features like the scan-skip function reduce false triggers caused by dust or light reflections. Fixed or floating blanking functions can be configured to permanently or temporarily ignore specific areas or objects—similar to the SE4D light curtain.

Additional Features

• PLd, Safety Category 3, SIL2

• MicroSD slot for data logging

• Ethernet and USB connectivity

• Robust housing with conductive coating against dust and dirt
